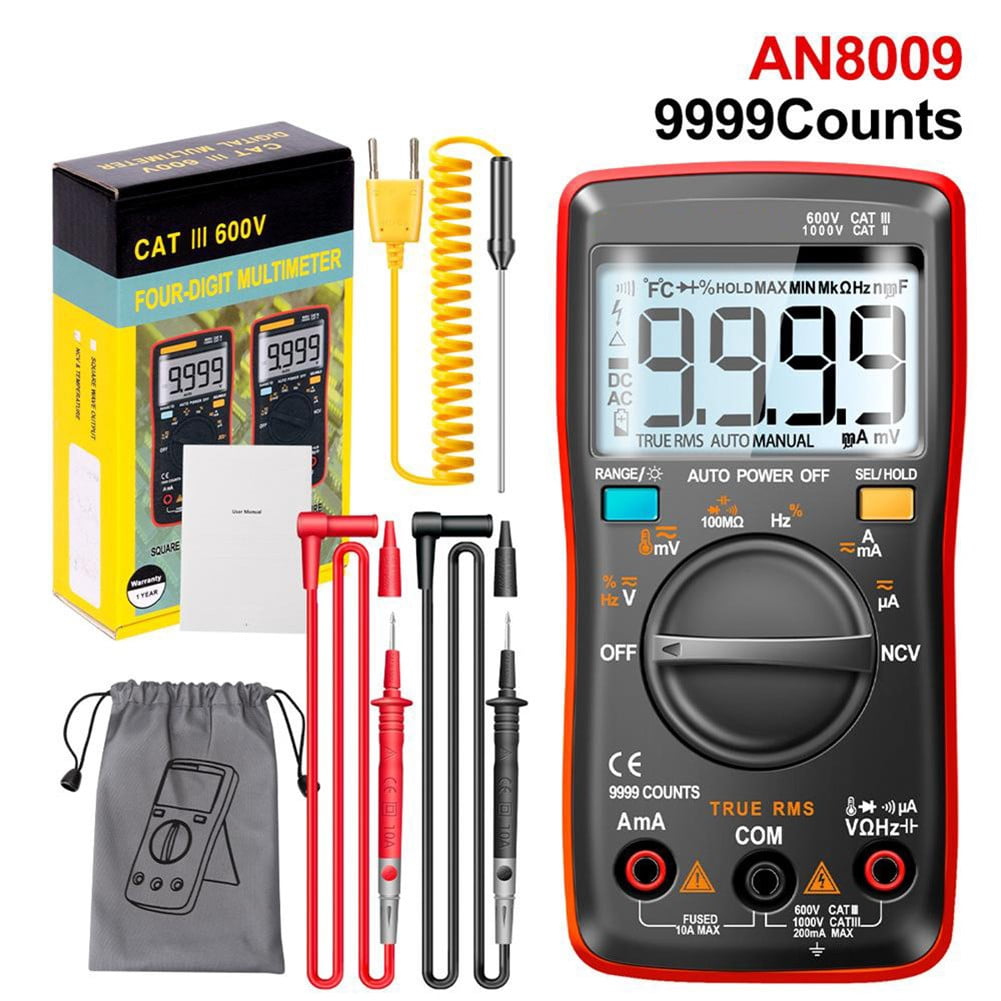

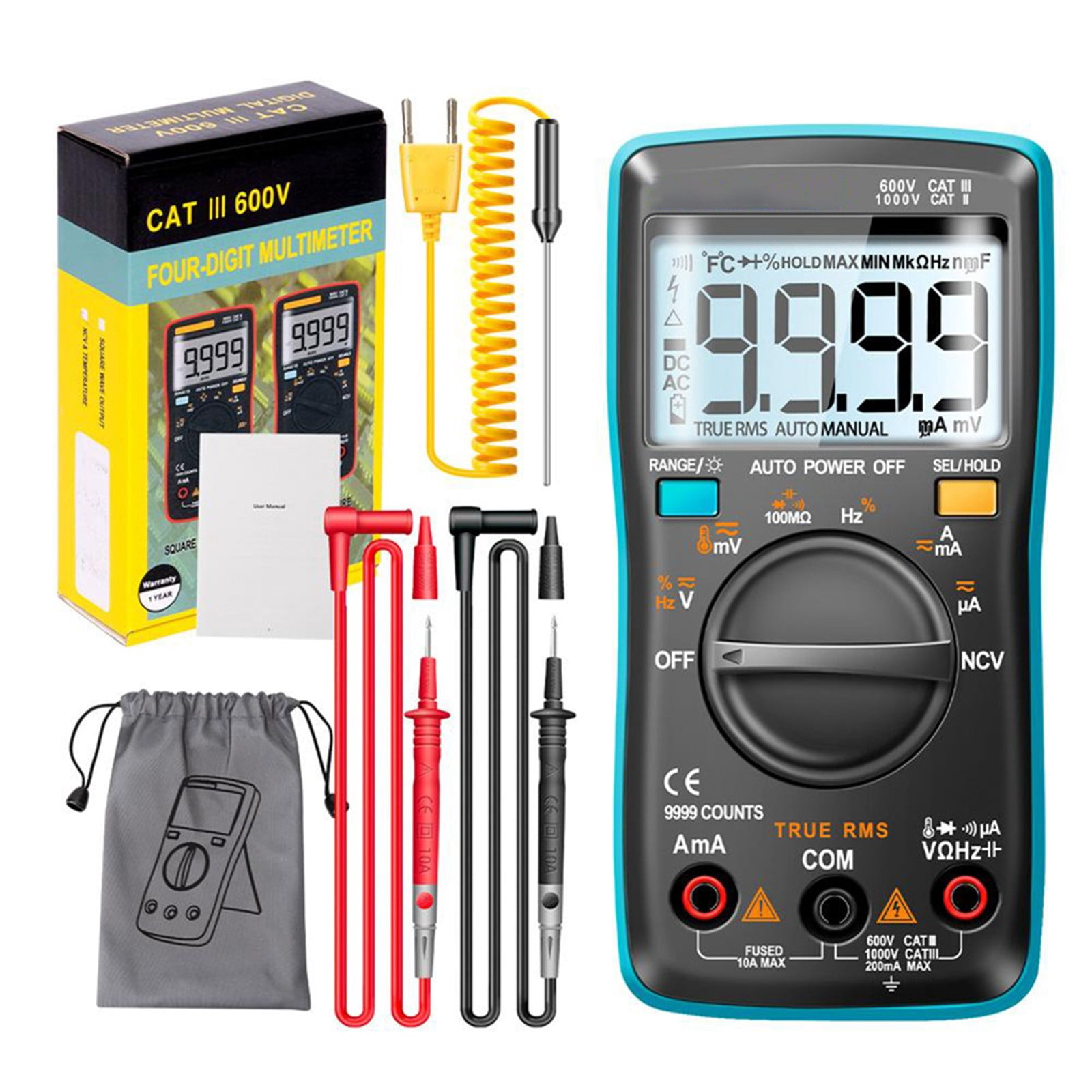

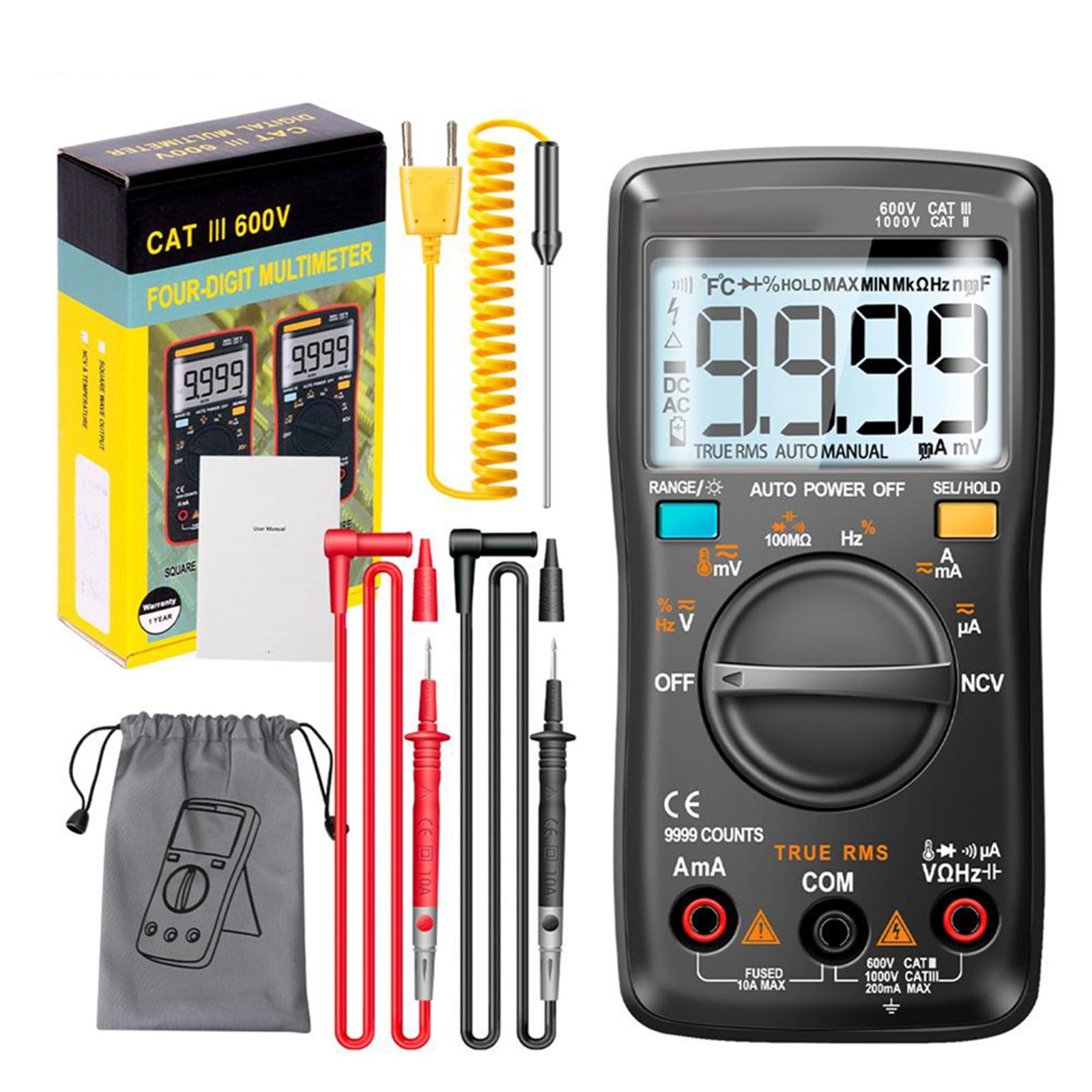

An8009 Nvc Smart Digital Multimeter Ac/Dc Voltage And Current Tester 9999 Counts

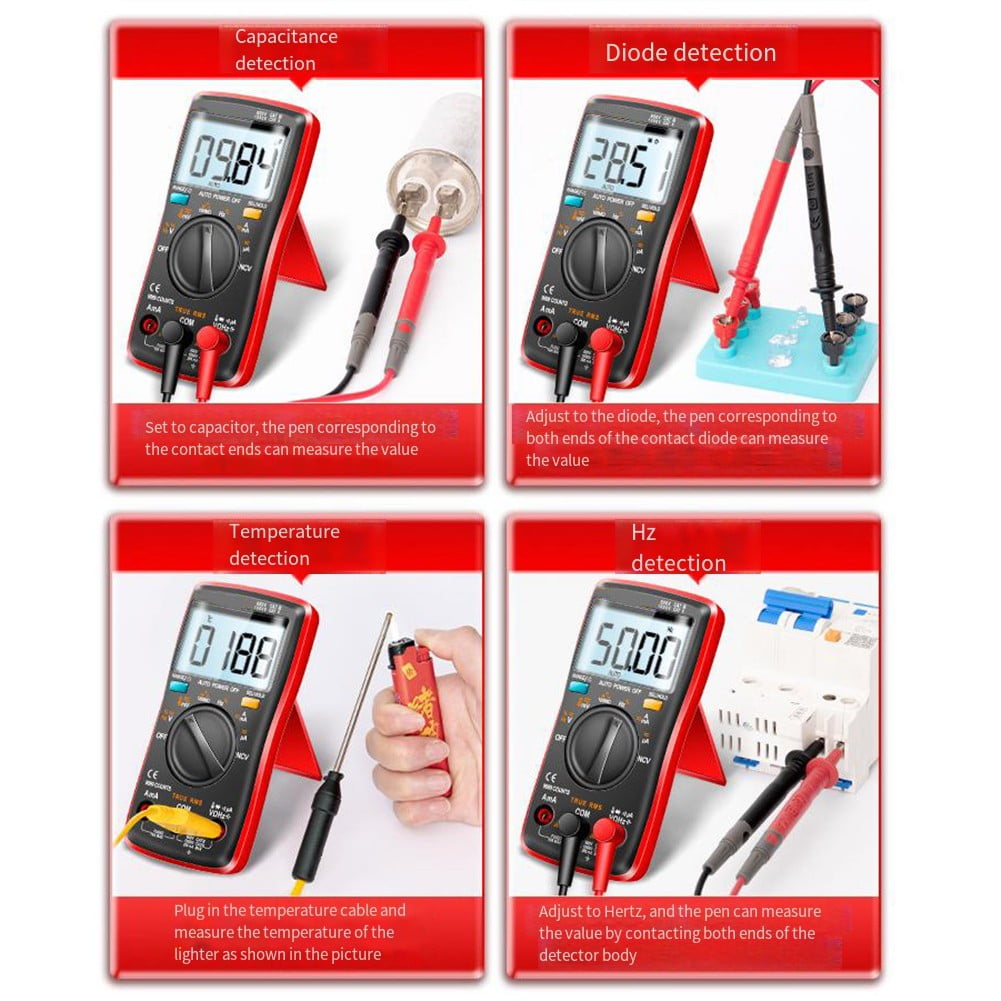

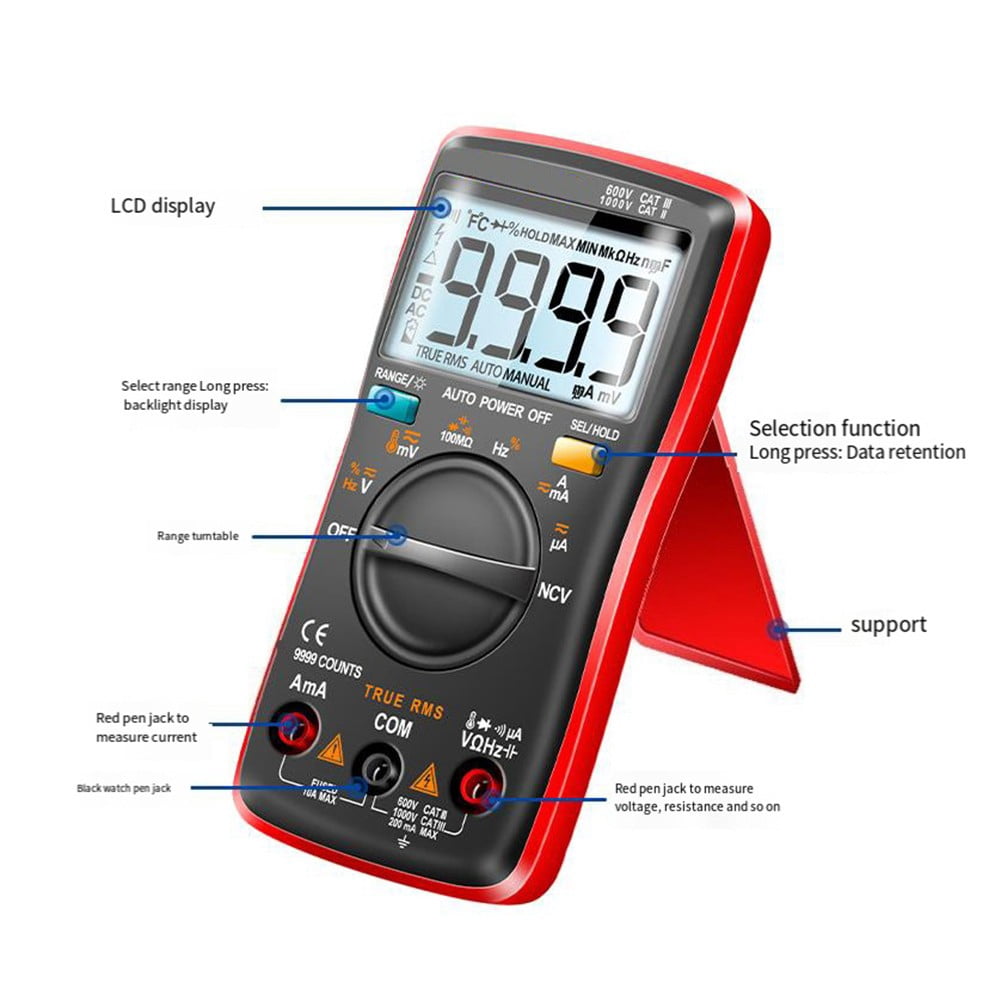

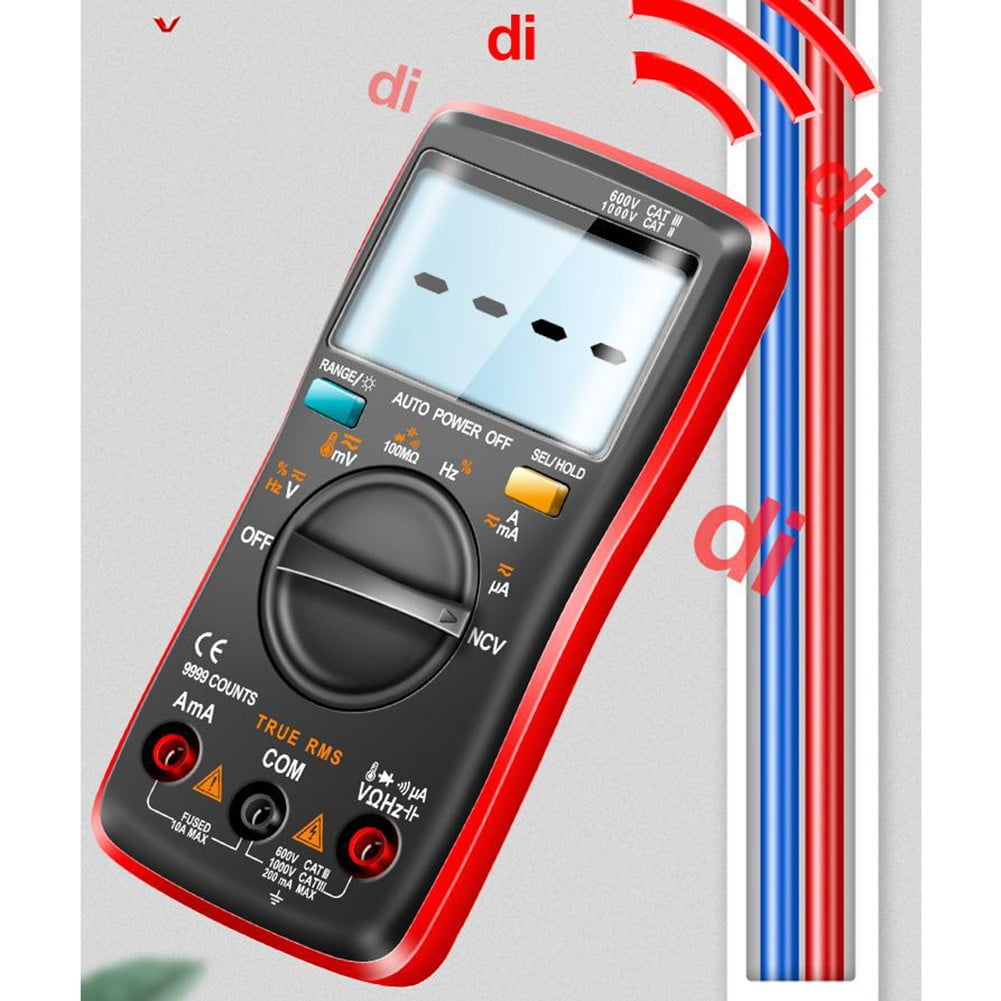

<p><strong>Features:</strong><br>Multifunctional range multimeter: 9999 readings/HD backlight display/data retention/auto shutdown<br>Comprehensive functions: more complete functions and wider range to meet users' various measurement needs. DC voltage measurement, AC voltage measurement, DC current measurement, AC current measurement, resistance measurement, buzzer detection, capacitance detection, diode detection, temperature detection, Hz detection<br>NCV non-contact induction voltage: no contact, induction of AC voltage through air, the stronger the voltage, the stronger the buzzer<br>HD LCD screen, clearer backlight display: long press RANGE/※ button &gt; 2 seconds to turn on the screen backlight, the value is clearly visible, Not afraid of dark environment<br>Back bracket design: the back telescopic bracket design can effectively support the multimeter. It can be placed on the table at an angle during measurement, making it easier to read data<br><br><strong>Specifications:</strong><br>Part Name: Digital Multimeter<br>Color: Red，Black，Blue<br>Material: ABS<br>Model：AN8009<br>DC voltage (V): 999.9V, 0.1V± (0.5% + 3)<br>DC voltage (mV): 99.99mV, 0.01mV± (0.5% + 3)<br>AC voltage (V): 750.0V, 0.1V± (1.0% + 3)<br>AC voltage (mV): 99.99mV, 0.01mV± (1.0% + 3)<br>DC current (mA&amp;A): 9.999A, 0.001A± (1.0% + 3)<br>DC current (μA): 999.9μΑ, 0.1μΑ± (0.8% + 3)<br>AC current (mA&amp;A): 9.999A, 0.001A± (1.2% + 3)<br>AC current (μA): 999.9μΑ, 0.1μΑ±(1.0%+3)<br>Resistance: 99.99ΜΩ, 0.01ΜΩ±(1.5%+3)<br>Capacitance: 9.999mF, 0.001mF±(5.0%+5)<br>Hertz: 9.999MHz, 0.001MHz±(1.0%+2)<br>Temperature °C: -20-1000°C, 1℃±(2.5%+5)<br>Temperature °F: (-4~1832°F, 1°F±(2.5%+5)<br>Diode: √<br>On/off buzzer: √<br>NCV: √<br>Screen backlight: √<br>True effective value: √<br>Low battery reminder: √<br>Data retention: √<br>Automatic shutdown: √<br>Material: ABS<br>Battery: 1.5V AAA*2 (not included)<br>Maximum digital display: 9999 counts<br>Total length of test leads: 80cm<br>Test leads material: PVC/brass<br>Size: 65.2*32.2*130.6mm/2.56*1.26*5.14inch<br>Weight: 114g<br><br><strong>Package Contents:</strong><br>1*Digital Multimeter<br>1 pair of test leads<br>1*Temperature line<br>1*Instruction manual<br>1*Storage bag<br><br><br>Note:<br>1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.<br>2. Please allow slight manual measurement deviation for the data.</p>

• [ MEASURING DEVICE] The AN8009 Smart Digital Multimeter delivers measuring capabilities across 9999 counts including AC/DC voltage and current, resistance, capacitance, diode checks, and temperature evaluations.
• [BRIGHT AND CLEAR DISPLAY] The HD LCD with backlight ensures you can clearly see measurements even in dimly lit environments, enhancing usability during various tasks.
• [STABLE AND EASY TO USE] With a practical back bracket design allowing it to stand upright at an angle on tables or work surfaces for easy reading while measuring.
• [SIZING NOTIFICATION] Please refer to your own measurement standards instead of relying on the size guide.
