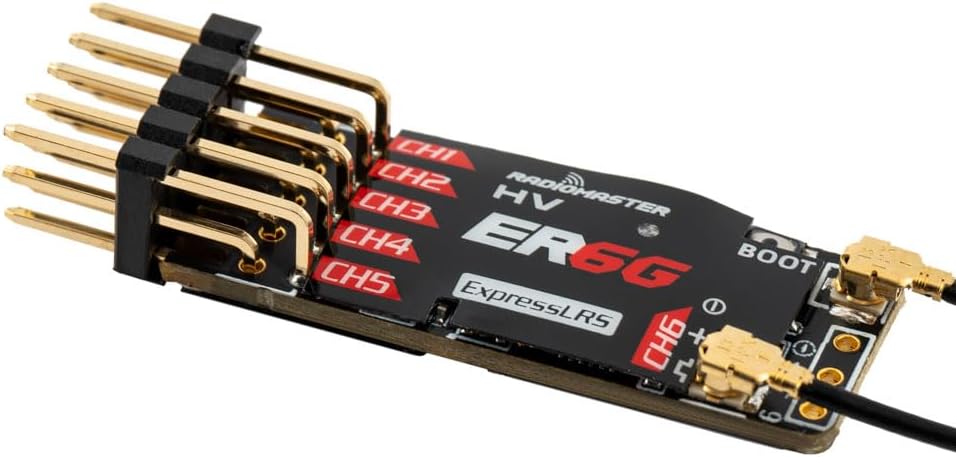

RadioMaster ER6G ER6GV Slim ExpressLRS CRSF PWM Dual Antenna RC Receiver for Fixed-Wing Aircraft Gliders (ER6G)

Features Based on the Revolutionary ExpressLRS System High performance, high reliability, flexible configuration, fast response speed and ultra-long range Support 6 PWM Channels Optimized ground up PCB design Automatically voltage telemetry of external battery voltage or built-in receiver voltage ER6GV Receiver is built-in high-precision air pressure sensor (Vario) Supports Wi-Fi updates and WEBUI configuration High quality 2.54 mm connector Standard 15 cm High Sensitivity Antenna For fixed-wing aircraft and gliders Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS Specification (ER6G) Item: ER6G 2.4GHz ELRS PWM Receiver Power supply: DC 3.5 - 8.4V Antenna type: 15cm high sensitivity antenna Wireless protocol: ExpressLRS 3.3.0 pre-installed Output channel: 6CH PWM Telemetry power: maximum 50mw (LUA Adjustable) Battery voltage detection range: DC 3.0 - 26V Weight: 5.0 grams Dimensions: 42*13*8mm Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER6-G 2.4GHz Diversity+6xPWM RX Specification (ER6GV) Item: ER6GV 2.4GHz ELRS PWM Receiver Power supply: DC 3.5 - 8.4V Antenna type: 15cm high sensitivity antenna Wireless protocol: ExpressLRS 3.2 pre-installed Output channel: 6CH PWM Return power: maximum 50mw (LUA Adjustable) Built-in high-precision air pressure sensor (Vario) Battery voltage detection range: DC 3.0 - 26V Weight: 5.0 grams Dimensions: 42*13*8mm Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER6-GV 2.4GHz Diversity+6xPWM+Vario RX Package Includes 1 * ER6G or ER6GV 2.4GHz ELRS PWM Receiver 1 * Voltage telemetry wire (Type-A) 2 * Heat-shrink tube 1 * User Card

• The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.
• The ER6G and ER6GV receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use.
• Both ER6G and ER6GV feature a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery.
• The ER6G Receiver has the same functionality as the ER6GV only without a built in Vario for competitions that prohibit the use of a Vario or simply for users who do not need a vario on their receiver.
• ER6GV Receiver is built-in high-precision air pressure sensor (Vario)
